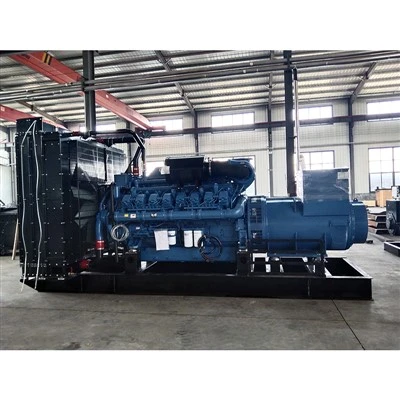

Diesel Generator

Diesel Generator Solutions: Industrial, Commercial & Project-Specific Power Systems





Weifang Bofa Power Equipment Co., Ltd. manufactures diesel generator sets for commercial, industrial, construction, telecom and other project applications. Available from 10 to 3000 kW, generator sets can be configured according to required voltage, frequency, engine, alternator, controller, fuel storage and installation conditions.



Engine options include Cummins, Perkins, Weichai, Yuchai and SDEC, with alternator options including Stamford, Leroy-Somer, Marathon and Engga.



Production and service processes follow applicable ISO 8528 and GB/T 2820-97 requirements, supported by ISO 9001 and ISO 14001 management systems. CE documentation is available for applicable generator configurations and destination-market requirements.





Quick Specification & Inquiry Checklist



Requirement

What to Confirm

Power

Required kVA or kW

Operation

Prime or standby

Voltage

110 / 220 / 380 / 400 / 415 / 480 V

Frequency

50 Hz or 60 Hz

Phase

Single or three phase

Engine

Preferred brand, if specified

Alternator

Preferred brand, if specified

Fuel Tank

Required operating duration

Control

Manual / automatic / AMF / parallel

Installation

Open / silent / trailer-mounted

Quantity

Number of generator sets

Destination

Country and project location



Technical Specifications & Popular Models



Model No.

Standby Power

Prime Power

Engine Model

Voltage

Frequency

Type

C25

25kVA

23kVA

4BT3.9-G1

230/400V

50Hz

Silent/Open/Trailer

C100

100kVA

90kVA

6BT5.9-G2

230/400V

50Hz

Silent/Open/Trailer

C250

250kVA

225kVA

NTA855-G1B

230/400V

50Hz

Silent/Open/Trailer

C500

500kVA

450kVA

KTA19-G3

230/400V

50Hz

Silent/Open

C1000

1000kVA

900kVA

KTA38-G9

400/690V

50Hz

Containerized



Diesel Generator Selection Guide


Power Output

Specify required kVA or kW based on your total connected load, motor starting surges, and future expansion buffer.



Yuchai Generator Set
Weichai Generator Set

Operation Mode

Determine if the unit will operate as Prime Power (continuous running for off-grid sites) or Standby Power (emergency backup for critical facilities).

Electrical Parameters

Select standard voltages (110V to 480V), frequencies (50Hz or 60Hz), and phases (single or three-phase).

Weichai Generator Set
Yuchai Generator Set

Core Components

Choose preferred engine, alternator, and controller brands to align with local service standards and maintenance familiarity.

Fuel Autonomy

Define required operating duration (e.g., 8-hour base skid tank, 24-hour, or 48-hour bulk storage) to size the fuel system correctly.

Weichai Generator Set
High Voltage Generator Sets

Installation Environment

Select open-type, acoustic silent enclosure, containerized, or mobile trailer-mounted designs.



Technical Configuration Options



Configuration

Available Options

Project Considerations

Power

10–3000 kW

Prime or standby load

Voltage

110–480V

Matched to local electrical systems

Frequency

50 / 60 Hz

Based on destination market

Phase

Single / Three Phase

According to load requirements

Engine

Cummins / Perkins / Weichai / Yuchai / SDEC

Selected by power and application

Alternator

Stamford / Leroy-Somer / Marathon / Engga

Matched to output and voltage

Controller

Deep Sea / ComAp / SmartGen

Manual, AMF or remote monitoring

Generator Type

Open / Silent / Containerized / Trailer

Based on installation and mobility

Fuel System

Base Tank / External Tank

Sized for required runtime

Cooling & Filtration

Standard / High-Ambient / Heavy-Duty

Adapted to site conditions

Synchronization

Single / Parallel / Load Sharing / N+1

For multi-unit power systems

Output

Terminal / Circuit Breaker / Switchgear

Based on connection requirements



Core Component Options





Engine

Cummins, Perkins, Weichai, Yuchai and SDEC engines are available across different power ranges and operating conditions.



Alternator

Stamford, Leroy-Somer, Marathon and Engga alternators can be matched to the required output, voltage and frequency.



Controller

Deep Sea, ComAp and SmartGen controllers support functions such as automatic start, AMF, remote monitoring and multi-unit paralleling.





OEM / ODM Customization Services



Project-Specific Engineering
Adaptation for high-temperature, high-altitude, limited-space and mobile applications, including cooling, ventilation, filtration and mounting arrangements.



Brand & Appearance Customization
Custom RAL colors, logos, warning labels, control-panel graphics and equipment nameplates based on customer branding requirements.



Electrical & Interface Adaptation
Customized terminal layouts, cable entry positions and external interfaces according to project drawings and installation requirements.



Documentation & Project Files
Multilingual manuals, wiring diagrams, specifications, factory test reports, nameplate data and applicable compliance documents.



Pre-Production Confirmation
Technical parameters, drawings, branding and documentation requirements are reviewed and confirmed before production.

Weifang Generator Set



Project-Specific Applications


Commercial Buildings

Backup power for offices, commercial complexes and essential building loads.

Industrial Facilities

Power supply for manufacturing plants and other high-load industrial operations.

Construction & Mobile Sites

Mobile power solutions for temporary and frequently relocated work sites.

Telecommunications

Backup power for telecom towers and remote communication infrastructure.

Healthcare & Critical Infrastructure

Generator systems for facilities requiring dependable emergency power.

Mining & Remote Operations

Power solutions for off-grid and demanding operating environments.



Enclosure and Fuel Storage Solutions


Enclosure Options

Open Type: For dedicated generator rooms and installations with existing ventilation and noise-control systems.

Silent Type: For outdoor and noise-sensitive locations requiring weather and acoustic protection.

Trailer-Mounted: For temporary power and applications requiring frequent relocation.

Fuel Storage

Base-Mounted Tank: Integrated into the generator skid for compact installations and standard operating periods.

External Fuel Tank: Suitable for extended runtime and sites requiring centralized or bulk fuel storage.



Factory Testing & Quality Inspection

Electrical Performance

Voltage regulation, frequency stability, phase balance, and harmonic distortion checks.

Mechanical Integrity

Engine starting behavior, cooling efficiency, oil pressure behavior, and vibration level measurements.

Control Logic

Verification of automatic start-stop sequences, safety alarm triggers, and emergency shutdown mechanisms.

Fuel System

Pressure testing of fuel lines, tank structural integrity, and leakage prevention.



Why Choose Us



14+ Years of Generator Manufacturing

Focused on diesel generator set manufacturing since 2011, with experience across standard and project-specific power systems.

01

10–3000 kW Power Coverage

Supports low- to high-power requirements for commercial, industrial, construction, telecom and other applications.

02

Certified Quality Management

Manufacturing supported by ISO 9001 and ISO 14001 management systems, with CE documentation available for applicable configurations.

03

International Project Experience

Generators exported to the Middle East, Southeast Asia and other overseas markets, with configurations adapted to different electrical and site requirements.

04

OEM / ODM Project Support

Supports customized branding, technical configurations, electrical interfaces and project documentation for distributors and engineering projects.

05




Commercial Terms & Service Commitment

Standard Warranty Terms

Complete Unit: 12 months or 1,000 running hours from the date of shipment (whichever comes first).

Production Lead Time

Standard configurations: 2–3 weeks. Custom or project-specific containerized units: subject to technical confirmation.

Minimum Order Quantity (MOQ)

1 set available for testing, project evaluation, or direct deployment.

After-Sales Response Commitment

Technical inquiries and service requests will receive an initial response within 24 hours, with structured, engineering-backed solutions provided within 72 hours.



Technical Support and Spare Parts

Remote Guidance

Technical assistance for site installation, electrical cabling connection, and first-time commissioning.

Troubleshooting Support

Rapid diagnostic assistance via video, photographs, and fault-code analysis from our senior electrical engineers.

Spare Parts Availability

Stocked components including fuel/oil filters, drive belts, control modules, sensors, and replacement electrical hardware shipped alongside your generator order.





FAQ



Q: How do I choose between an open-type and silent-type generator?

A: Open-type generators are commonly installed in dedicated generator rooms with suitable ventilation and acoustic treatment. Silent-type configurations are often selected for outdoor or noise-sensitive locations where enclosure and sound-control requirements need to be considered.

Q: Can multiple generators run in parallel?

A: Selected generator configurations can operate in parallel when equipped with compatible synchronization controls, switchgear and protection systems. Parallel operation can be used to increase available capacity, support load sharing or provide redundancy such as N+1 configurations, subject to the project design.

Q: What kind of environmental and weather protections are built into outdoor enclosures?

A: Silent and containerized enclosures feature weatherproof powder-coated steel or aluminum, stainless steel hardware, rain-proof louvers, and corrosion-resistant internal insulation rated for high ambient temperatures and dusty industrial environments.

Q: Do these generators comply with international quality and emission standards?

A: Yes. Our units utilize globally certified engines and alternators designed to meet international standards such as ISO8528 for generator performance, along with respective regional emission tier requirements.

Q: How is the generator protected during long-distance maritime transport?

A: Units are securely bolted onto heavy-duty wooden export skids, wrapped in moisture-barrier industrial shrink films, and protected with industrial desiccant packs inside sealed export-grade packaging to prevent corrosion during ocean freight.

Q: What documents and certifications are provided with the shipment?

A: Each unit comes with a complete factory test report (load bank test), engine and alternator certificate of origin, wiring diagrams, multilingual operation manuals, and customs clearance documents.

Q: Do you support third-party inspection (SGS, Intertek, BV) before shipment?

A: Yes. We welcome third-party inspections and regularly cooperate with agencies like SGS, Intertek, and BV for full-load testing, dimension checks, and documentation verification prior to dispatch.

Q: What spare parts support do you provide?

A: We supply extensive fast-moving maintenance parts (filters, belts, sensors) and can customize recommended spare parts packages (1,000 to 2,000 running hours) to ship directly with your main generator order.

We're well-known as one of the best diesel generator suppliers in China. With a professional production team, we are able to meet the needs of the majority of our customers. Please feel free to buy cheap diesel generator for sale here from our factory. For price consultation, contact us.
